Zmorph VX Printing Set
Merk:
Zmorph
- Hoogwaardige service en support
- Eenvoudige mogelijkheid voor leasen.
- Gunstige verzendvoorwaarden en retourbeleid
- Fysieke showrooms op diverse locaties in Nederland
- 2-5 Werkdagen
- Klantenservice van 10:00 tot 17:00
Informatie
Unique features of ZMorph VX:
- 3D printing, CNC and laser, all in one machine
- Vast arrange of fabrication materials (see materials list)
- Interchangeable toolheads and worktables with easy switching procedure
- Top grade 3D printing with advanced two-material printing features, like image mapping and color blending
- Autocalibration
- LCD touchscreen
- Sturdy aluminum construction with high quality components, designed to withstand high torques of CNC milling and high speeds of 3D printing
- Enclosed build chamber with fully protected electronics
- Innovative Closed Loop System
- Free Voxelizer software licence
Materials:
- 3D printing: ABS and derivatives, PLA and derivatives, PVA, PET, ASA, Nylon, HIPS, Thermochrome, TPU, Flex materials,
- Upgrade your ZMorph with other ZMorph toolheads and access more fabrication materials, like wood, machining wax or modeling board.
Applications:
- Functional prototypes
- Concept models
- End use parts and low volume production
- Lessons
- Tools, jigs and fixtures
- Signage and customization
- Architectural models
- PCBs
- Research
- Historical reconstruction
- Art and decor
- Molds and castings
- Medical visualisation aids
- Cosplay
ZMorph VX Printing Set includes:
- ZMorph 2.0 VX
- 1.75 mm Plastic Extruder with 0.3 mm nozzle
- Heated worktable for 3D printing
- Printing fan add-on
- Spare extruder nozzle 0.3mm
- Dimafix fixative for 3D printing
- Tools and Maintenance materials
- 2 spools of PLA filament, 0.5 kg each
When buying this set, you get a free 1-year license for Voxelizer software (counted from the day of first launch). After that period, you can use the software for $15 a month or buy a lifetime license at voxelizer.com
Properties
Construction: | High precision sliding rails on X and Y axis, made from structural steel and stainless steel. Omron endstops, precisely machined aluminium X carriage, rigid and durable. Non-slip trapezoidal nuts on Z axis made out of high quality POM, add-on slot |
Frame and Covers: | High quality aluminum 4 mm and 3 mm (precise and very rigid), stainless steel 2 mm and 3 mm. Covers made from 3mm PET |
Work Area L x W x H: | 250 x 235 x 165 mm (toolhead dependent) |
Software | Compatible with: Voxelizer, Simplify3D, Cura, Slic3r |
Communication: | USB and LAN (access to WiFi after plugging to WiFi router). Standalone printing supported via panel + internal SD card |
Electrionics | Sunbeam 3.0 with ARM LPC1769 processor, equipped with 5 stepper motor drivers: 3 for XYZ axis, 2 more for double material extruder. Internal disc drive accessible via USB |

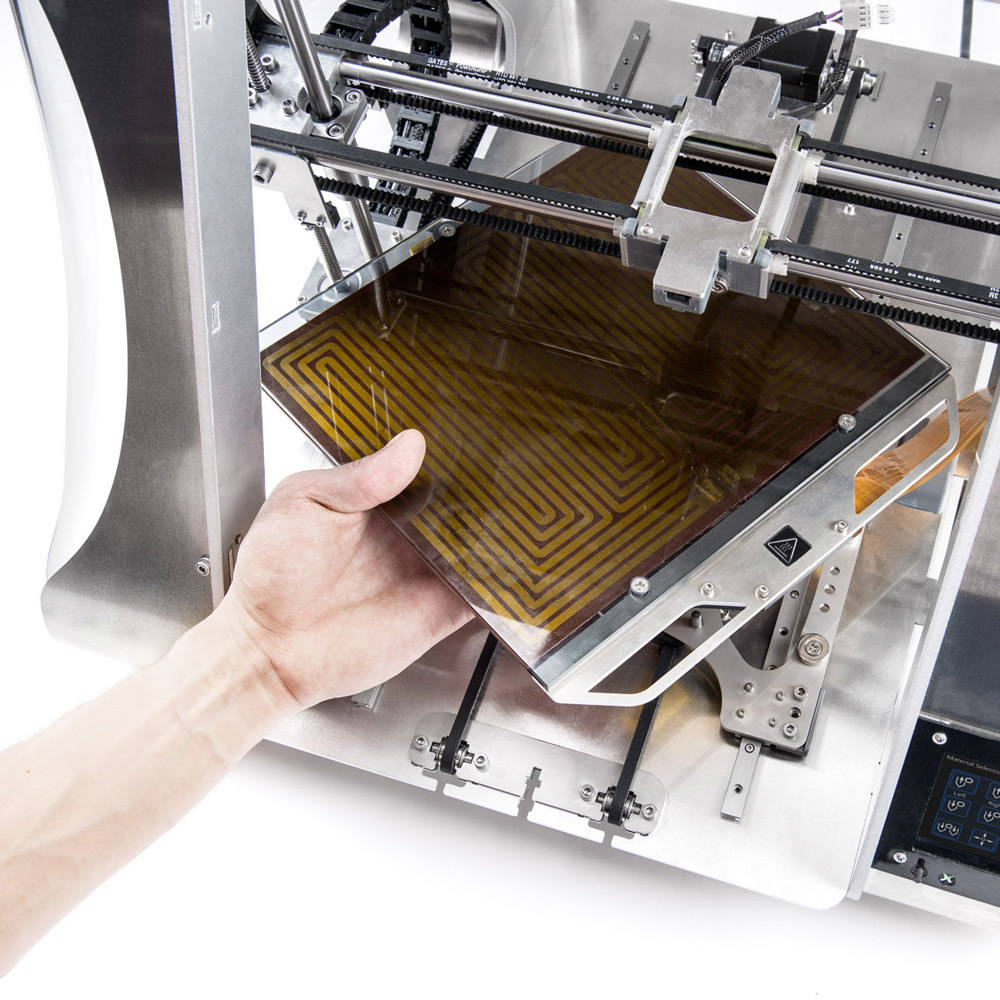

Heated Worktable: | super-flat, precisely machined working table with exchangeable borosilicate glass sheets with temperature up to 120 ℃ |

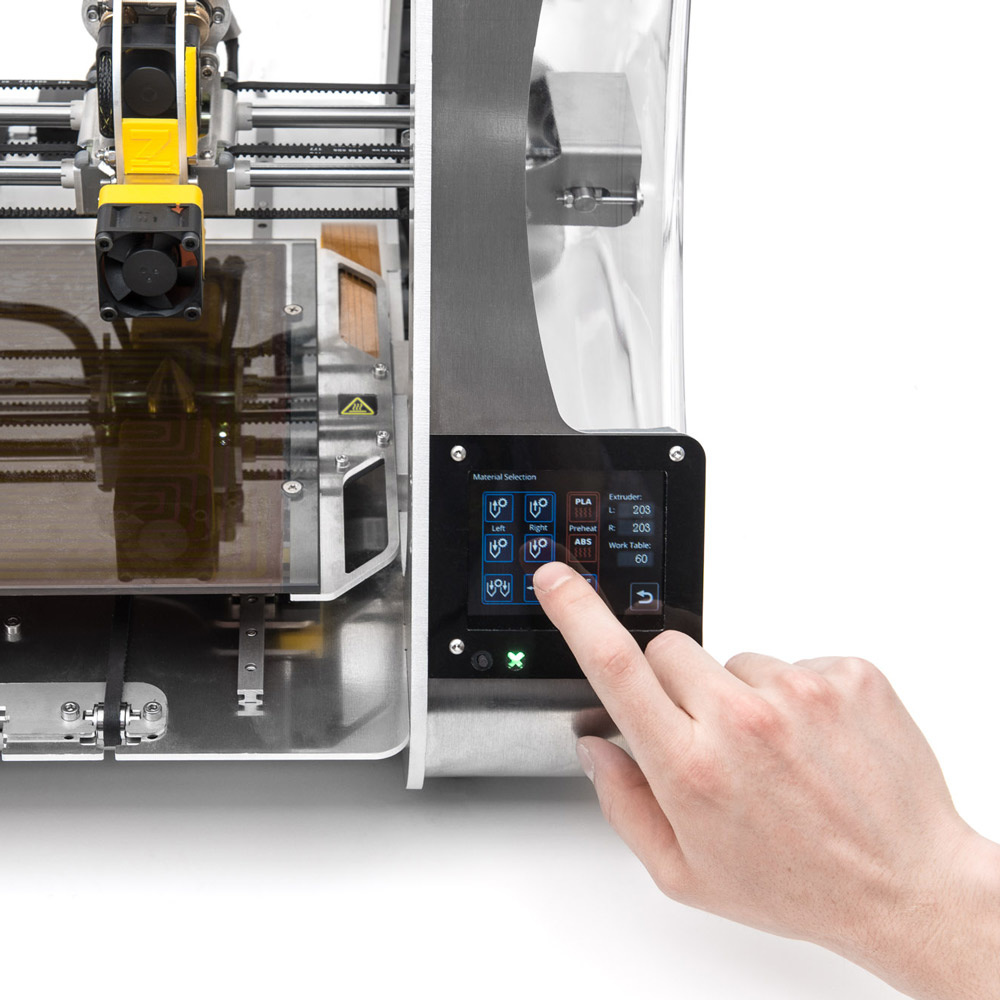

Display: | LCD color touchscreen |
Mechanical Positioning Precison: | 14 microns for X and Y axes, 0.6 microns for Z axis |
Layer resolution: | 50 - 400 microns |
Interchangeable Nozzles: | Included: 0.3 mm, Available: 0.2 mm, 0.4 m |
Interchangeable Toolheads: | Included: 1.75 Plastic Extruder, Available: Dual Plastic Extruder, Laser, CNC, Thick Paste, 3.0 Plastic Extruder |
Interchangeable Worktables: | Included:Heated worktable for 3D printing, Available: CNC worktable for milling and cutting |
Calibration: | Tensometric autocalibration |
Maximum 3D printing temperature: | 250 ℃ |
Other: | Silent X and Y stepper drivers - reducing motor noise by 50%, ER-11 collet in CNC Pro Toolhead, Laser Toolhead operating at 2.8 W power |
Dimensions: | 530 x 555 x 480 mm |
