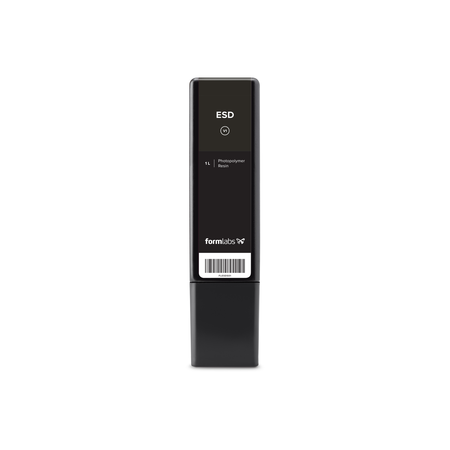

Formlabs Form ESD Resin
Formlabs Form ESD Resin 190,- Excl. BTW

Formlabs Form ESD Resin

€229,90
€190,00
Incl. BTW | GRATIS verzonden binnen Nederland Excl. BTW | GRATIS verzonden binnen Nederland
Op werkdagen voor 14:00 besteld, morgen in huis
SKU: RS-F2-ESDS-01
Informatie

Product description

Increase the operational efficiency and improve the yield of your electronics manufacturing lines with ESD Resin, a cost-effective solution to create custom ESD-safe production tooling.

Use ESD Resin to prototype and validate electronics production workflows, print static-dissipative parts that repel dust and powder, and create enclosures to protect sensitive electronics from static discharge

Support print resolutions: 100 µm and 50µm

Post-curing required

Why Choose ESD Resin?

Use ESD Resin to reduce risk and increase the yield on your manufacturing line by 3D printing custom tools, jigs, and fixtures for automotive, aerospace, electronics manufacturing.

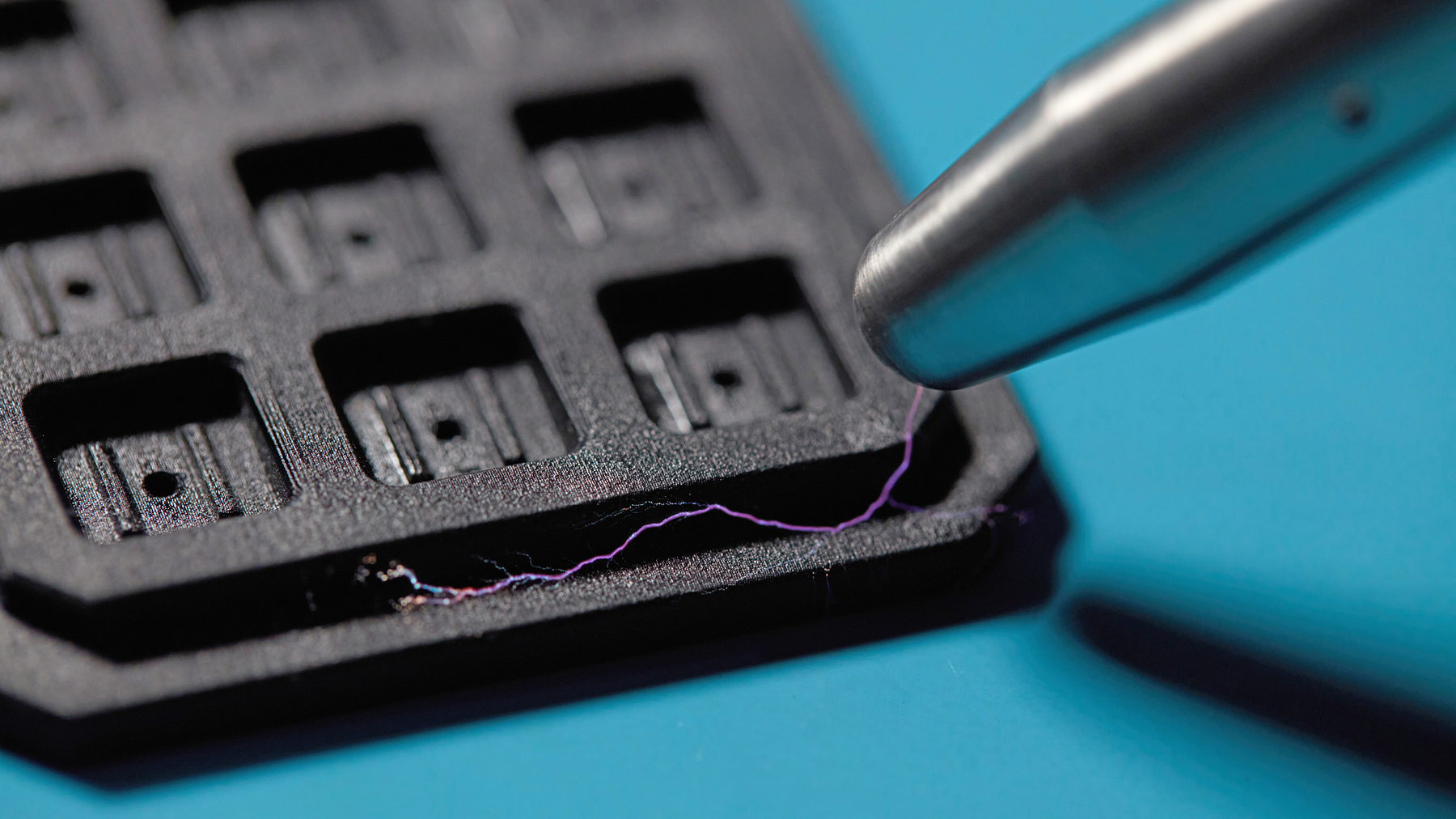

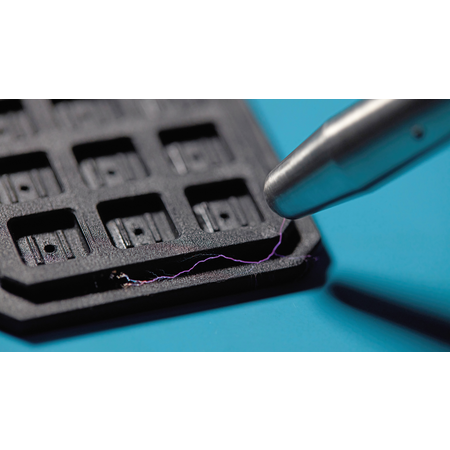

Static-Dissipative

Protect your critical electronics from unregulated static discharge to prevent component failures.

High Toughness

With its high modulus and impact strength, ESD Resin is made to withstand operation on the production line.

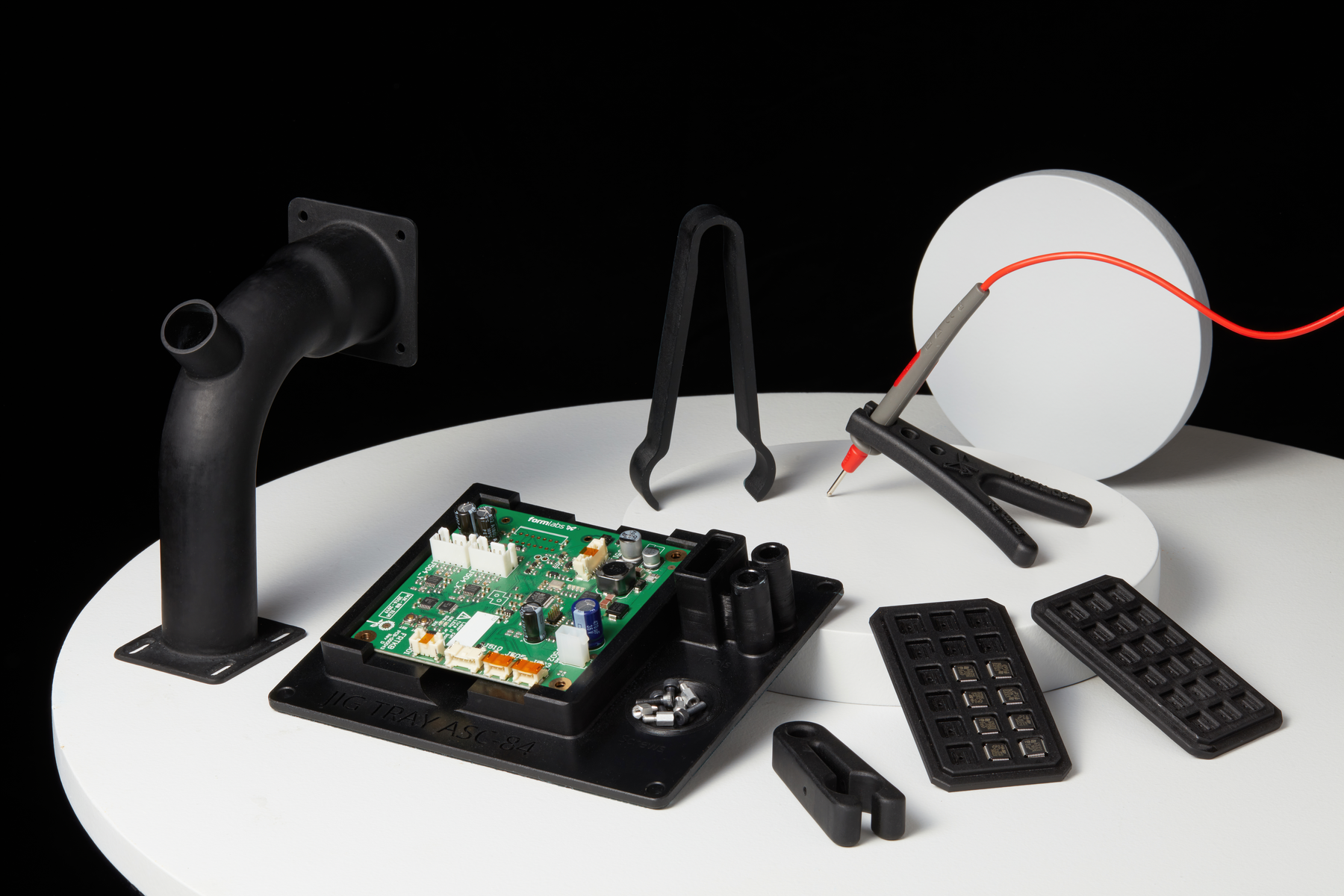

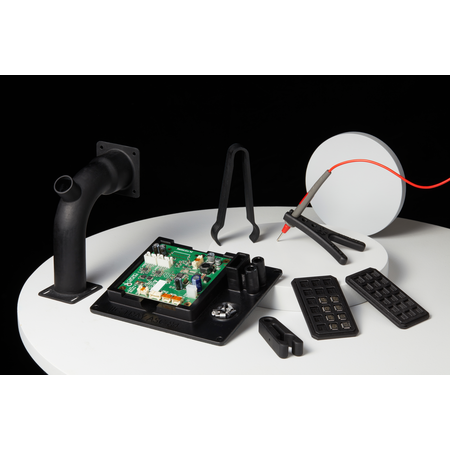

Applications

ESD Resin is a cost-effective solution for producing static-dissipative parts designed to endure use on the factory floor.

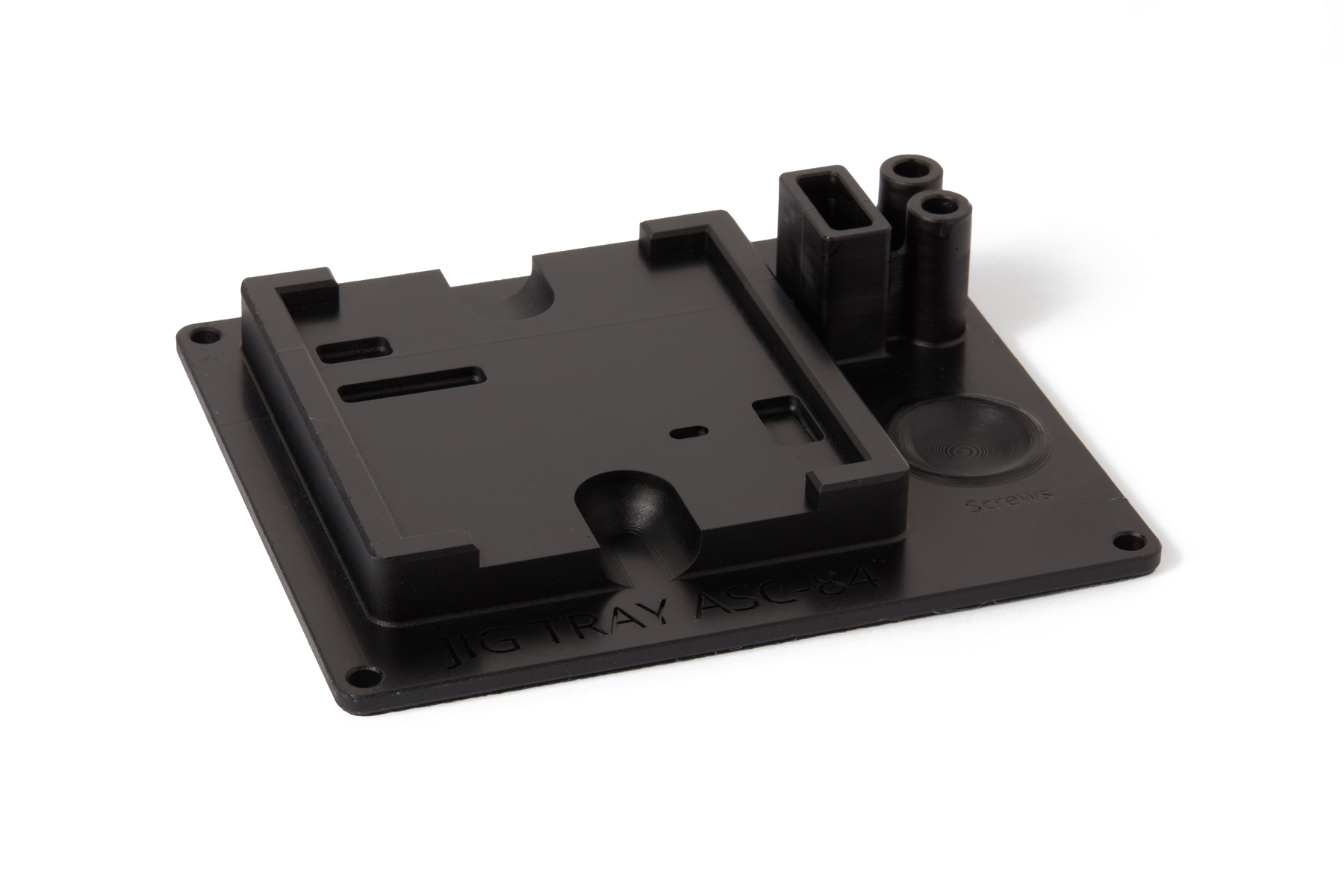

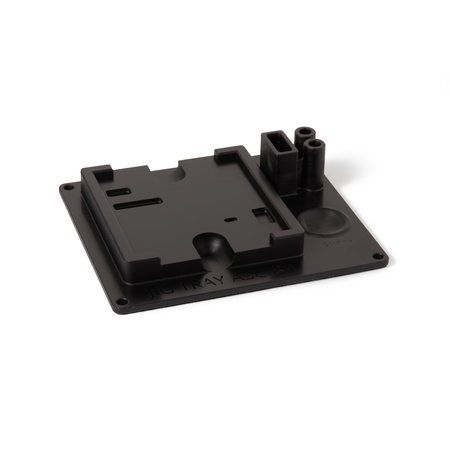

  • Tooling & fixturing for electronics manufacturing
  • Custom trays for component handling and storage
  • Anti-static prototype and end-use components

Materials Properties

Property

Post-cured at 70ºC

Surface Resistivity

105 - 108

Ultimate Tensile Strength

44.2 MPa

Tensile Modulus

1.937 GPa

Strain @ break

12%

Notched Izod

26 J/m

Heat Deflection Temperature 0.45 MPA

54.2ºC

Heat Deflection Temperature 1.8 MPA

62.2ºC


Post-Processing

Form Wash Settings

Duration

20 Minutes in IPA / TPM

Notes

Do not leave ESD Resin in solvent for longer than 20 minutes, as excessive solvent exposure affects the quality of the final part. We recommend washing ESD Resin separately from other resins to avoid staining.

Form Cure Settings

Duration        Temperature

70° C               60 minutes

Notes

Follow the post-curing indications to achieve maximum material properties.

Specificaties
Type: Engineering Resin
Inhoud: 1 Liter
Versie: V1
Kleur: Zwart
Form: Formlabs Form 3(+), Form 3B(+) & Form 3L
Resin Tank: Form 3 Resin Tank en Form 3L Resin tank
Bouw Platform: Formlabs Standaard Build Platform
Laag resolutie: 100 en 50 micrometer
Form Wash: Optioneel
Form Cure: Optioneel
Formlabs Form ESD Resin
Reviews
Geen reviews gevonden
Help ons en andere klanten door het schrijven van een review
