Lay3rs | Materials

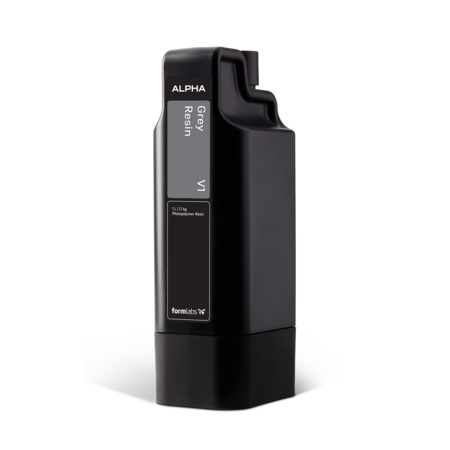

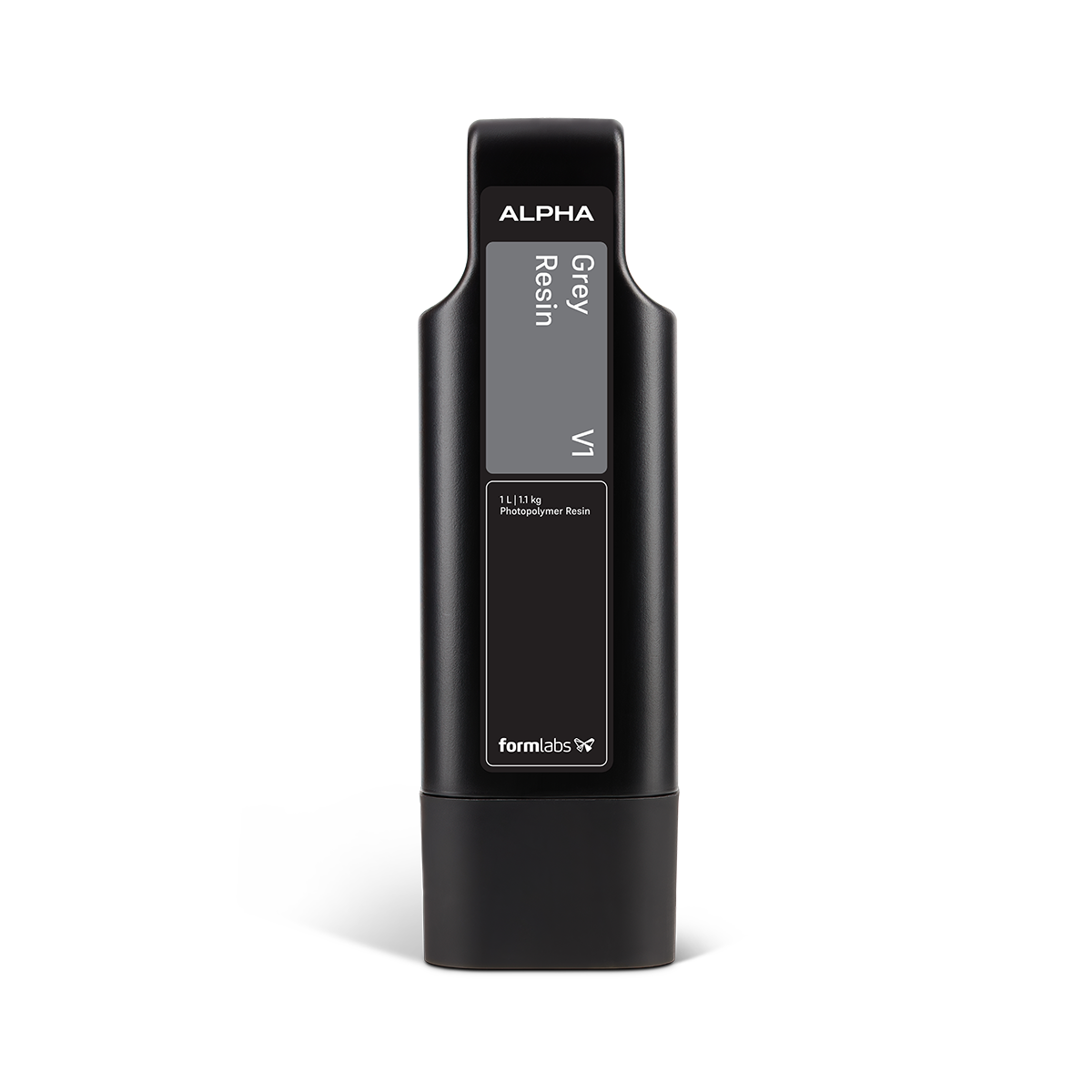

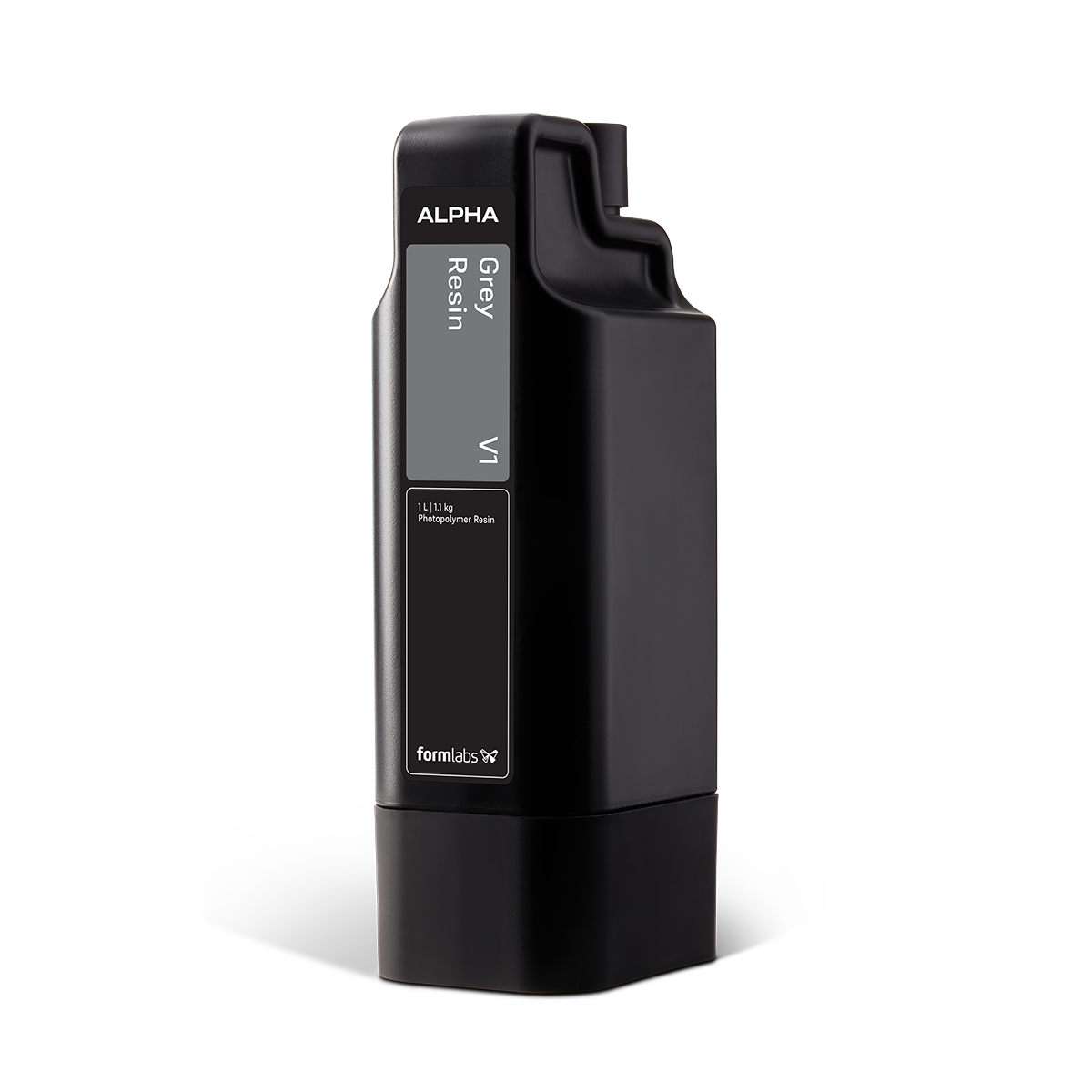

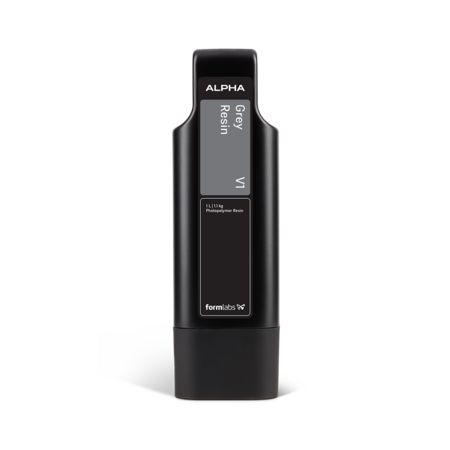

Alpha Grey Resin 1 L
Alpha Resin for Form Studio 1
Alpha Grey Resin is a versatile general purpose resin for aesthetic, functional parts, combining fine detail and a rich matte colour with fast print speeds up to 45 mm/h.

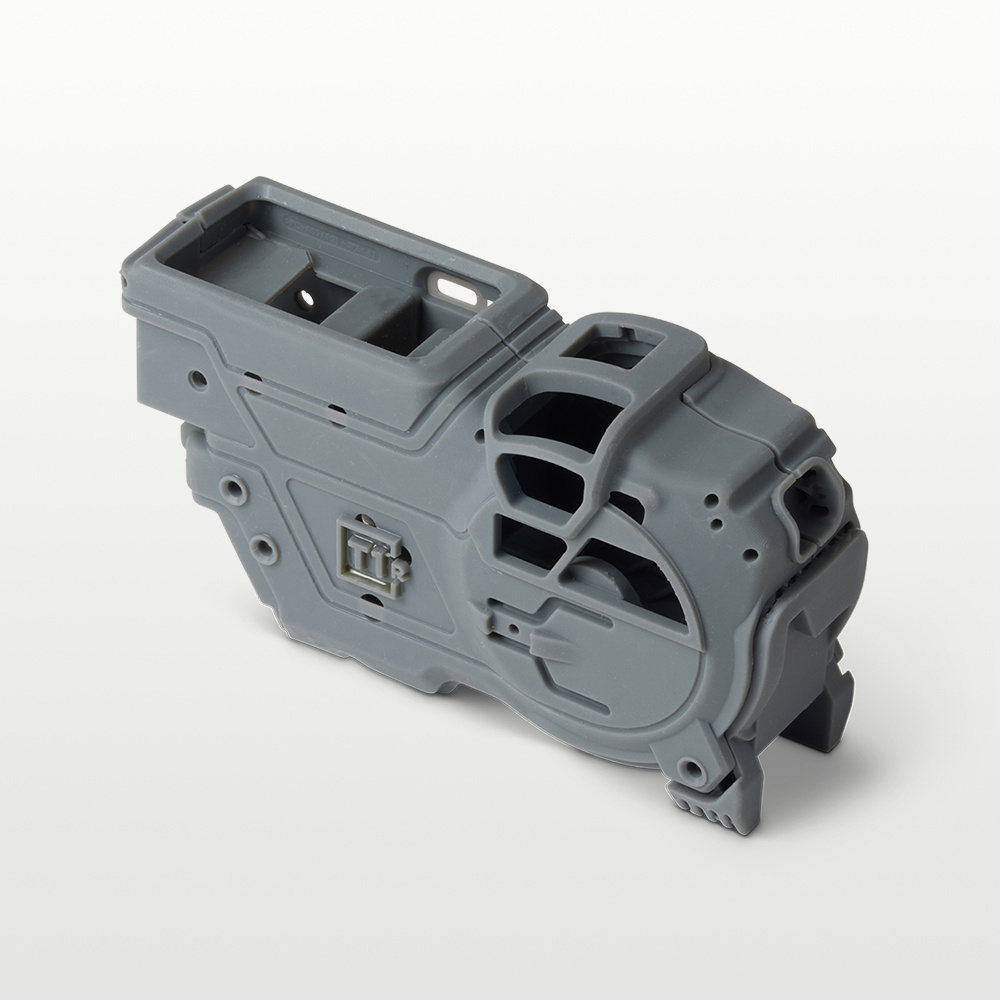

Create concept models, form-and-fit prototypes and jigs that exceed the strength and toughness of comparable ABS-like resins: 43 MPa tensile strength and 34% elongation at break, without sacrificing fine features and surface quality.
Properties
Up to 45 mm/h
Regardless of part count or size.
43 MPa tensile strength
34% elongation at break, beyond ABS-like resins.
Low odour, skin-safe
Printed parts meet ISO 10993 for long-term skin contact (>30 days) when post-processed per Formlabs guidelines.
UL GREENGUARD Gold
UL GREENGUARD Gold certified when Alpha Resins are printed on Form Studio 1 with the VOC Extractor.
Applications
- Concept models
- Form-and-fit prototypes
- Jigs
Compatibility
For Form Studio 1 only, with the standard Form Studio 1 Resin Tank. Not compatible with Form 4/4B or Form 4L/4BL.
Specifications
| Specification |
Value |
| Ultimate tensile strength |
43 MPa |
| Elongation at break |
34% |
| Print speed |
Up to 45 mm/h |
| Printer |
Form Studio 1 |
| Resin tank |
Form Studio 1 Resin Tank |
| Volume |
1 litre |
| Shipping weight |
1.5 kg |
