Information
Lay3rs | Materials

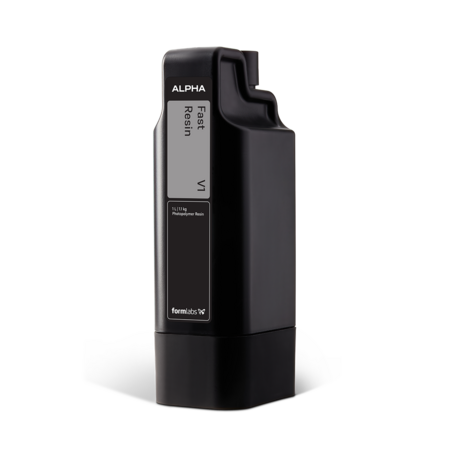

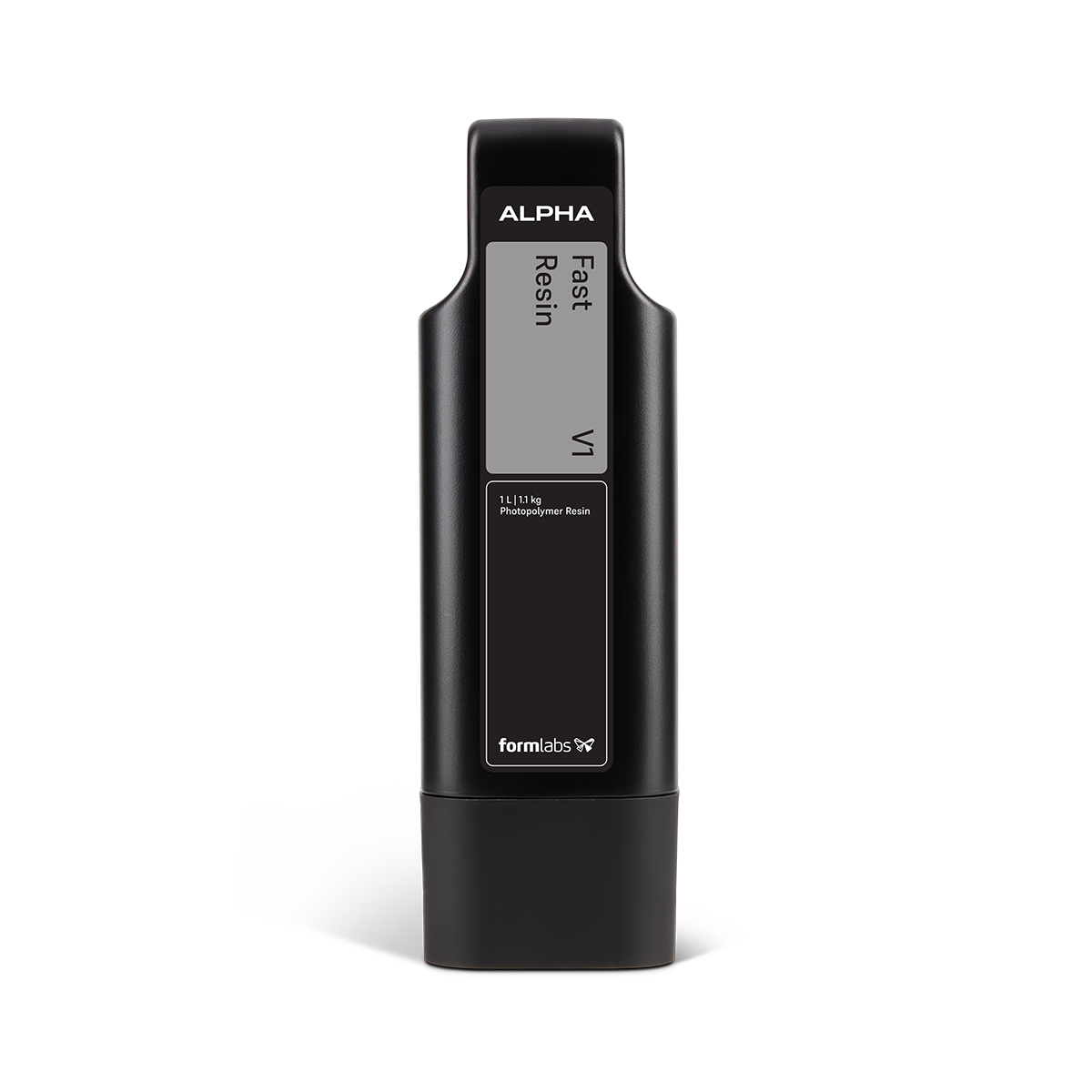

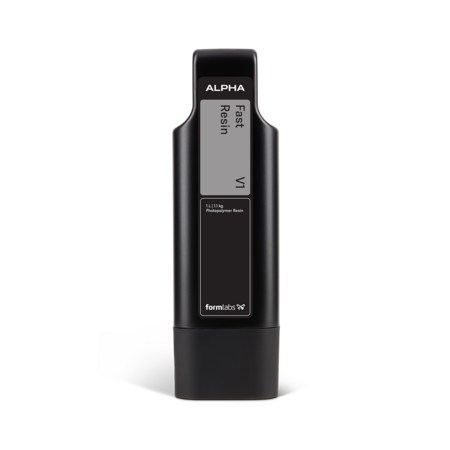

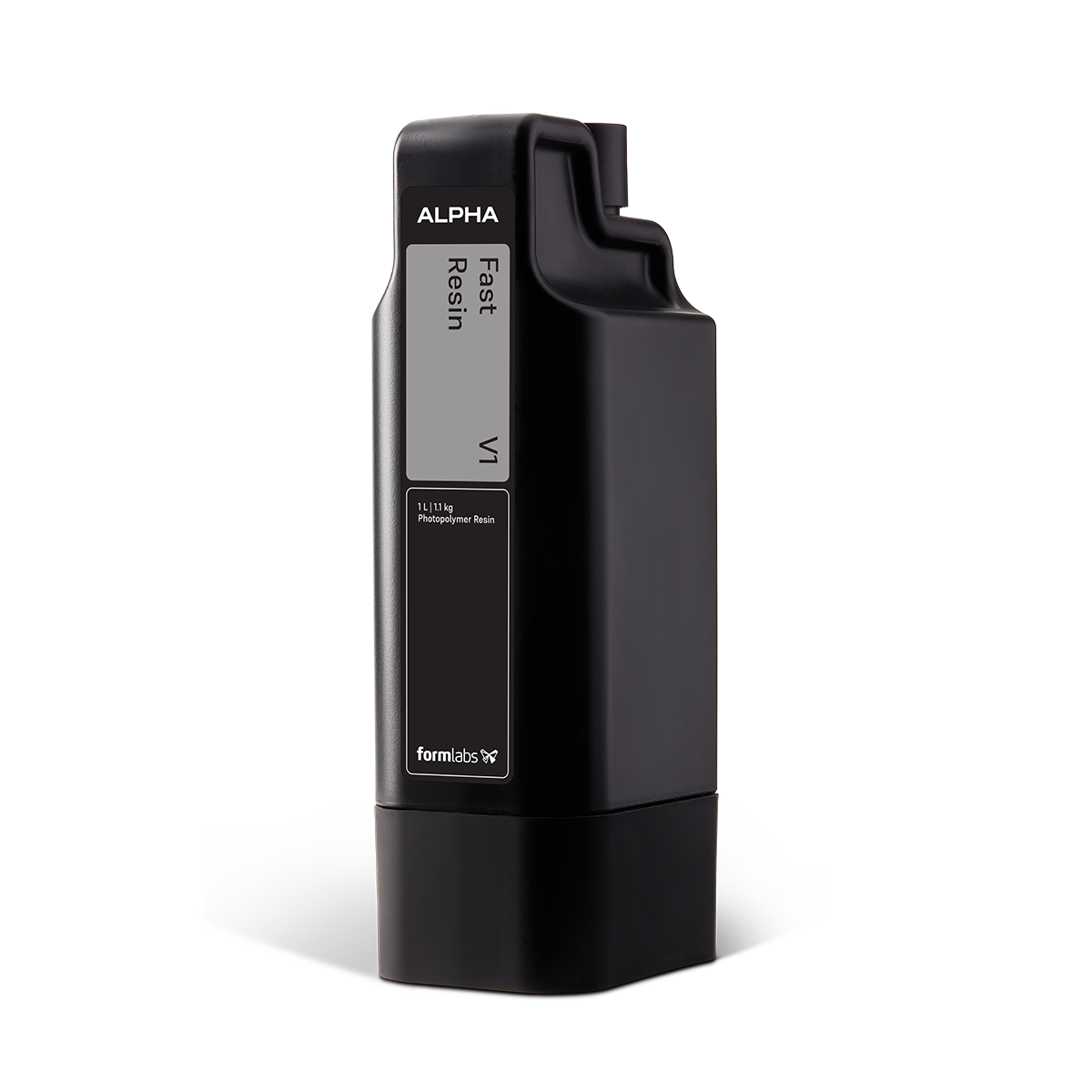

Alpha Fast Resin 1 L
Alpha Resin for Form Studio 1
Alpha Fast Resin is a fast-printing general purpose resin with print speeds up to 130 mm/h: small components in minutes, or the entire Form Studio 1 build volume in less than two hours.
Build prototypes faster or create jigs, fixtures and tooling with 46 MPa tensile strength and 34% elongation at break, exceeding the strength and toughness of comparable ABS-like resins. Print settings are tested and validated by Formlabs, so speed does not come at the expense of print success.
Properties
Up to 130 mm/h
The entire build volume in under two hours.
46 MPa tensile strength
34% elongation at break for functional tools.
Low odour, skin-safe
Printed parts meet ISO 10993 for long-term skin contact (>30 days) when post-processed per Formlabs guidelines.
UL GREENGUARD Gold
UL GREENGUARD Gold certified when Alpha Resins are printed on Form Studio 1 with the VOC Extractor.
Applications
- Fast iterative prototypes

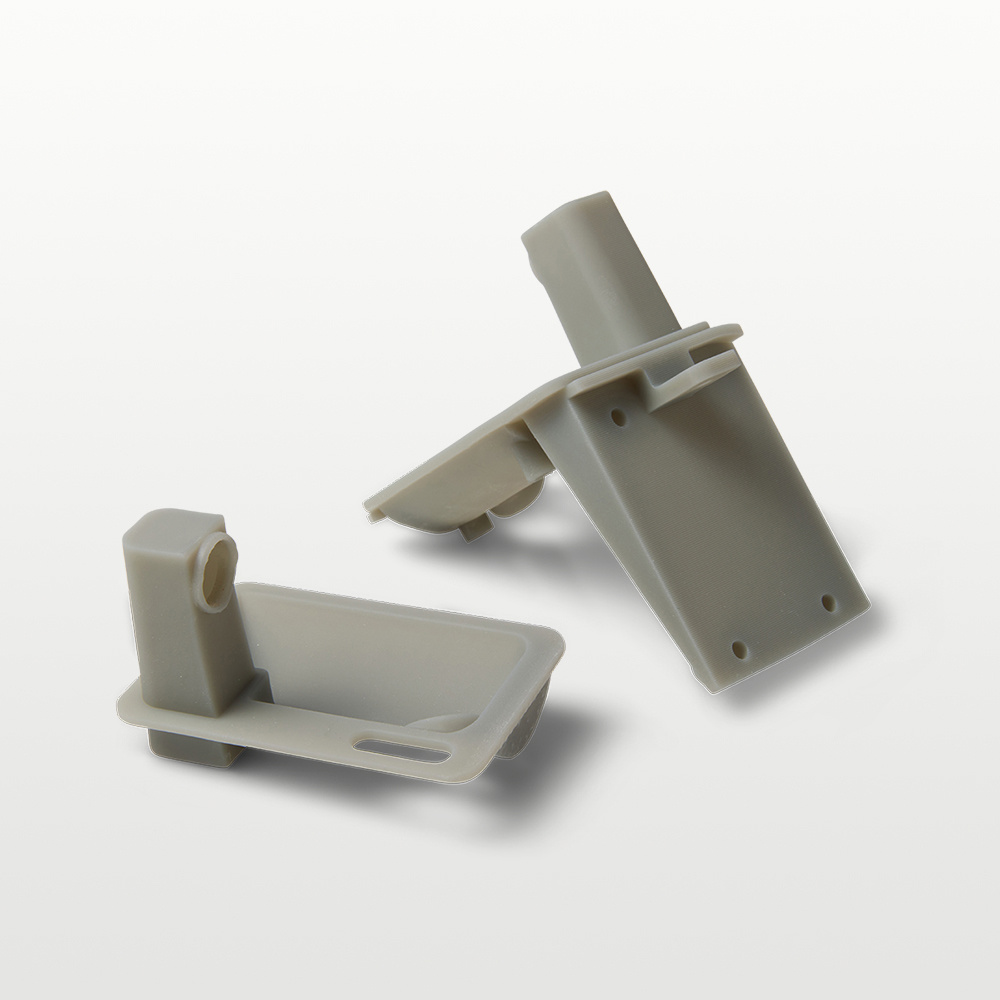

- Jigs, fixtures and tooling
Compatibility
For Form Studio 1 only, with the standard Form Studio 1 Resin Tank. Not compatible with Form 4/4B or Form 4L/4BL.
Specifications
| Specification |
Value |
| Ultimate tensile strength |
46 MPa |
| Elongation at break |
34% |
| Print speed |
Up to 130 mm/h (250 micron) |
| Printer |
Form Studio 1 |
| Resin tank |
Form Studio 1 Resin Tank |
| Volume |
1 litre |
| Shipping weight |
1.5 kg |
