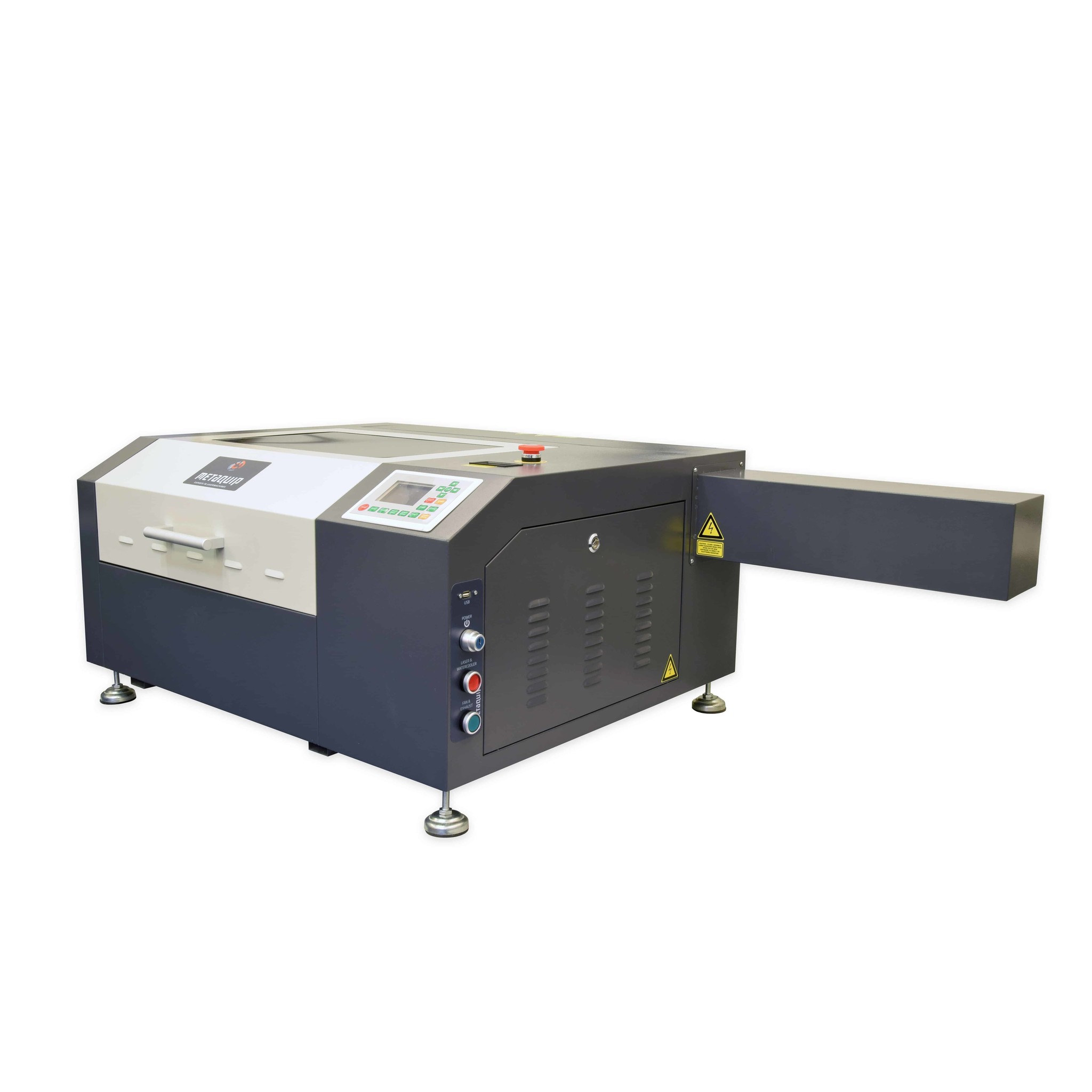

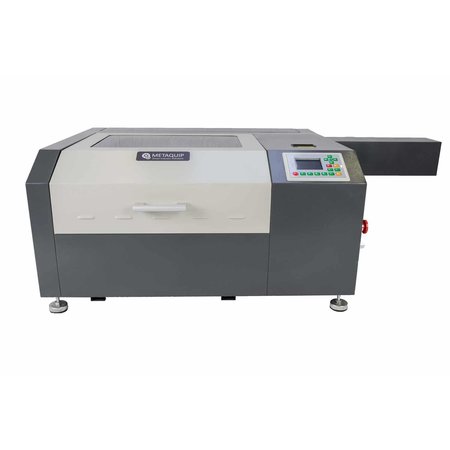

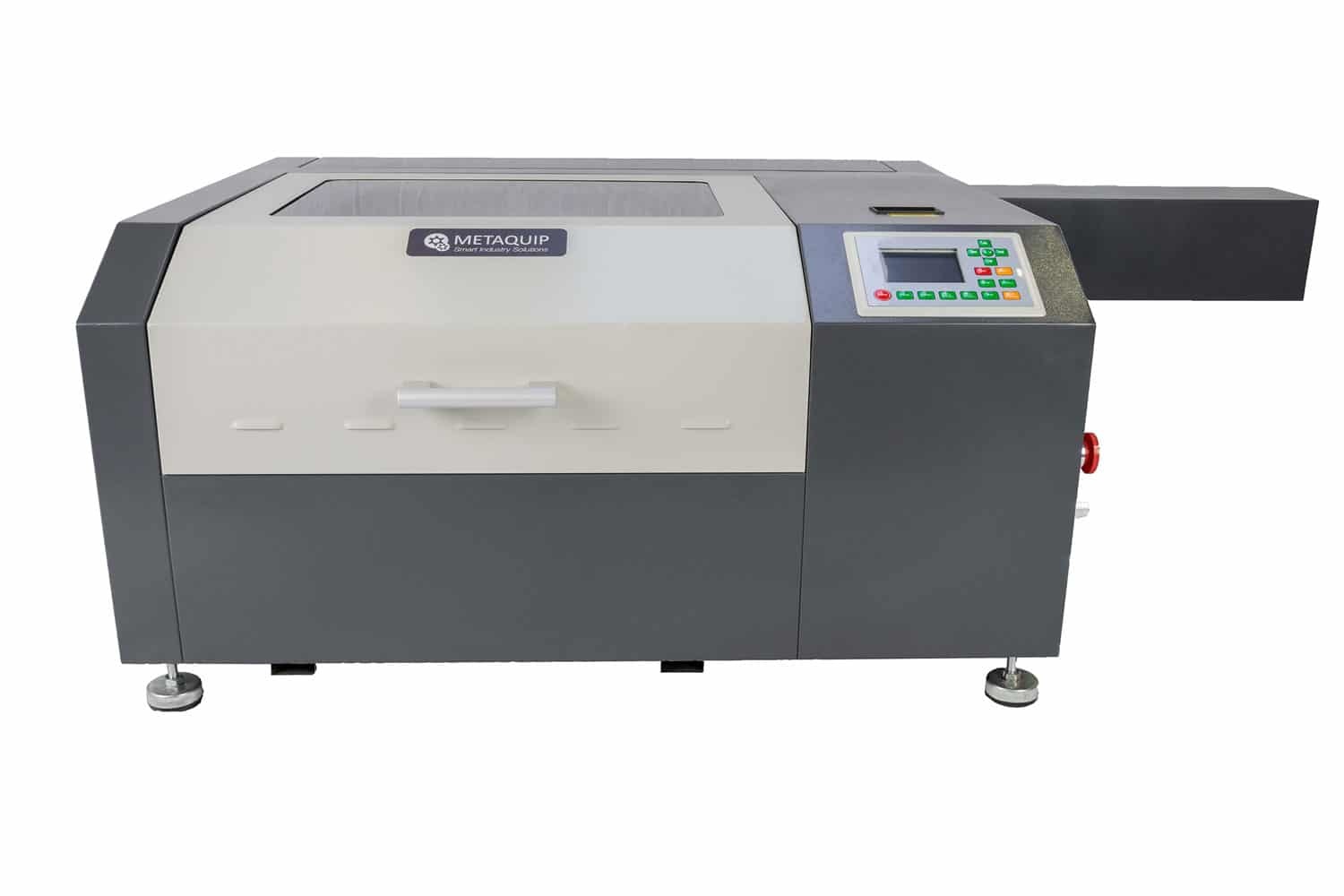

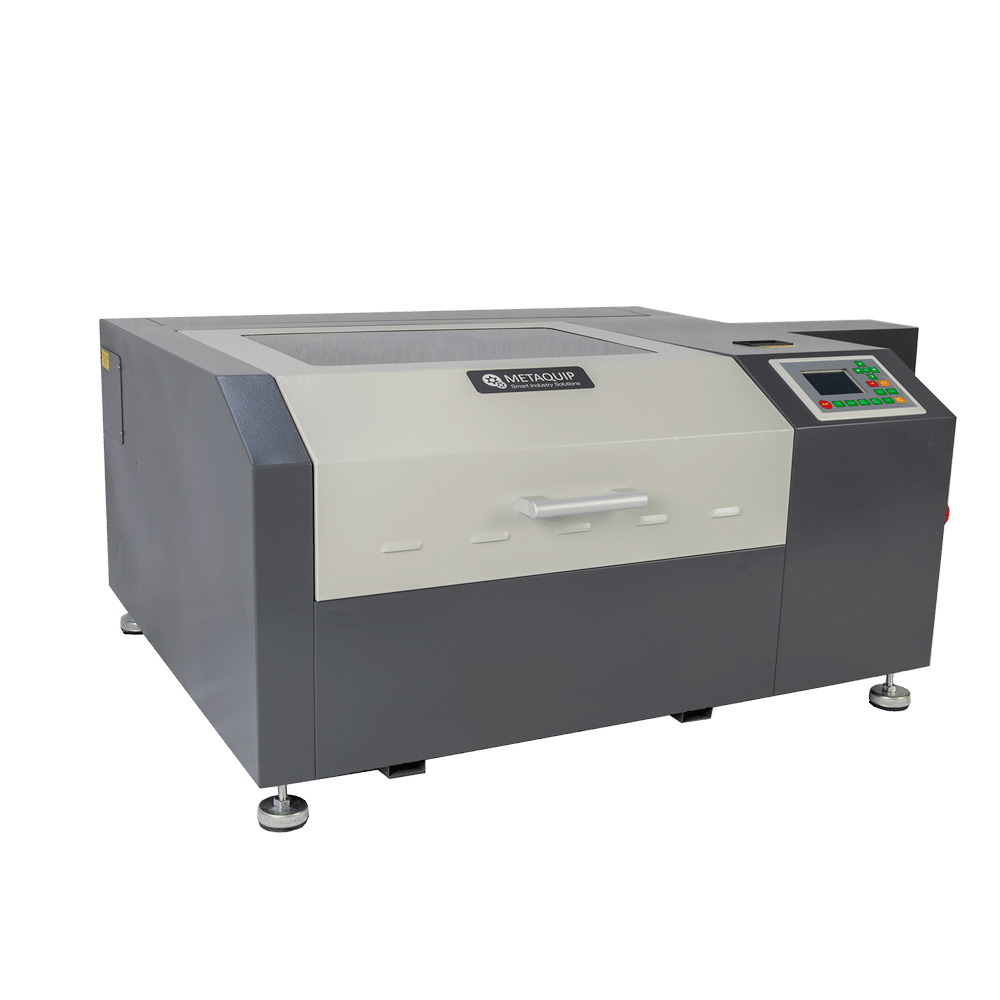

CO2 LASER – LITE LASERCUTTER & ENGRAVING MACHINE
The MetaQuip CO2 laser lite lasercutter & engraving machine is the introductory system in the MetaQuip lineup. However this machine doesn’t feel like a beginner user when you see it’s stunning, high-quality engraving and cutting. This low-cost, desktop unit is the perfect for home users or schools. Engrave and cut plexiglas, acrylate, wood, paper and foam up to 3-5mm thickness at low speeds. Laser cutting or engraving is an ideal process for a range of materials, especially flat sheet based materials. The infrared laser is focused to melt or evaporate the material, cutting through or ablating the top layer of the material. Laser engraving is possible for materials like plastics, wood, cork, paper, fabrics, leather, glass, mirrors and anodized or painted metal materials. During engraving the laser will ablate / evaporate the top layer, changing the surface structure even up to significant depths. Materials that can be cut easily are plastics, fabrics, leather, wood, cork and paper.
The used laser head is executed in high quality and can manually be set in height. Besides that this machine has on the left as well as on and right side a guidance that guarantees the robustness and reproducibility.
|Laser power||Acrylic / Plexiglass||Fabrics / leather||Wood||Marble|
|40W||3-5 mm||Best result optimal speed & power||2-4 mm||Too low power|
|60W||8-10 mm||Best result optimal speed & power||4-8 mm||Too low power|
EASY TO USE LASERWORKS SOFTWARE AND CONTROLLER
Laser Works is easy to install and works without a dongle. This makes it easy to quickly switch between different computers. Additionally Laserworks also works perfectly with Windows 10. The software is available in multiple languages and supports import of many different vector and graphical formats. In addition, you can work in multiple layers with in each layer a separate operation which makes multi-step, complex jobs easy to execute.

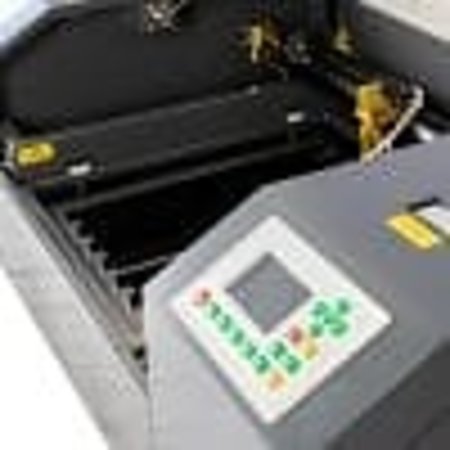

This controller has excellent error handling making it ideal for beginners and less technical advanced users. When the laserdoor opens the laser is immediately interrupted, so that never an unsafe situation can occur. The machine loads the job in its internal memory, after which the computer can be disconnected. A graphical display on the laser machine provides clear information on progress made and how to start and stop a laser job.
WHAT COMES IN THE BOX?
- Working Area: 380 x 380mm
- Laser Type: Glass Sealed-off CO, laser tube, wavelength 10.6 um
- Laser Power: 40W / 60W
- Laser Tube Cooling: Purified Recycling Water Cooling
- Laser Output Control: 0-100%
- Engraving Speed: 0-200mm/s
- Cutting Speed: 0-80mm/s
- Working Voltage: AC230v/110V +/-10%, 50-60Hz
- Position Accuracy: +/- 0.01mm
- Minimal Character size: 1mm
- Machine Power: < 300W
- Working Environment: Temperature 0-40 degrees Celcius, Humidity 5-95%
- Software requirements: WinXp, Win Vista/7/8 32 & 64 bits
- Supported Format: DXF, PLT, BMP, JPG
- Dimensions [L x D x H]: 95 x 68 x 30 cm
DELIVERY TIME & SHIPPING
When not in stock the delivery time is about 8-12 weeks. U can choose to pick up your CO2 laser yourself or MetaQuip can deliver it to your address. The weight is about 45kg and will be delivered in a wooden box of 150 x 82 x 43 cm. Delivery costs are 150 EURO within the Netherlands and Belgium.
WARRANTEE & CERTIFICATION
1 year, CE certified
