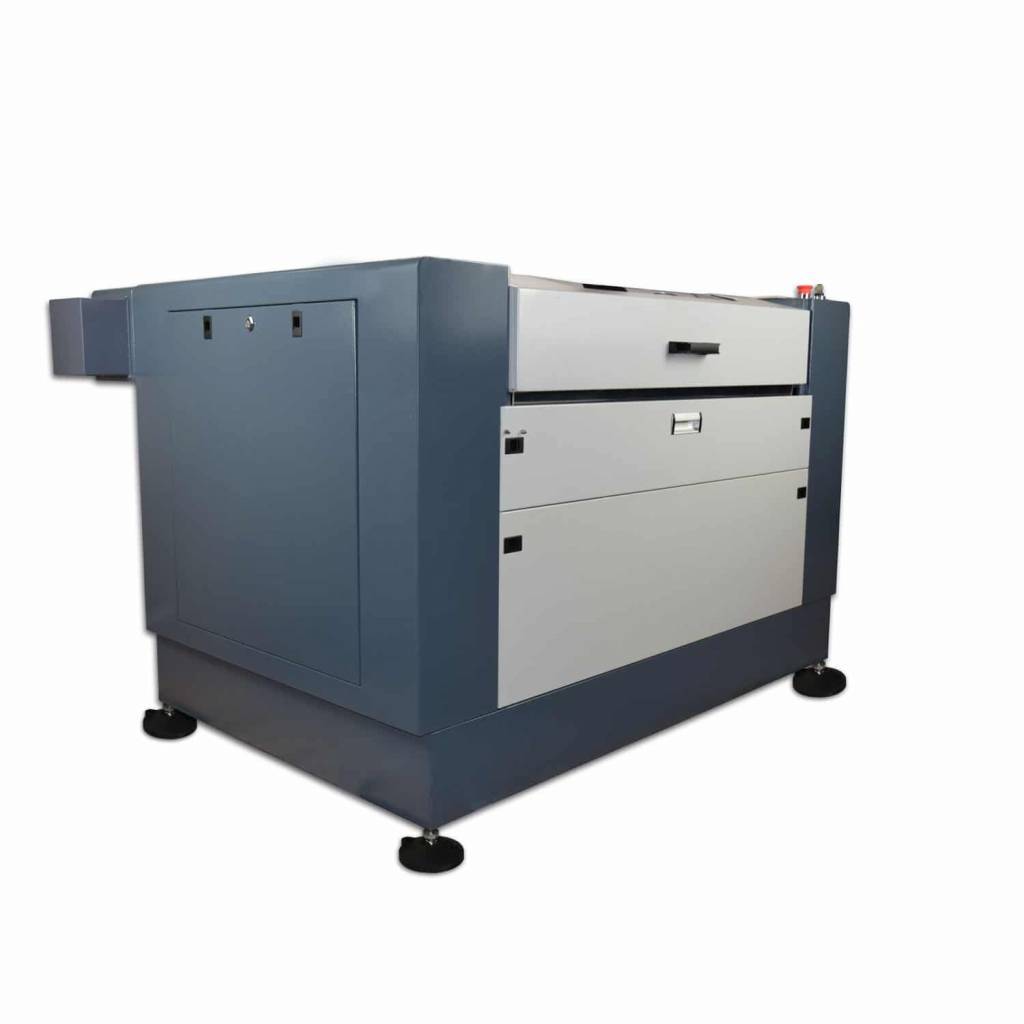

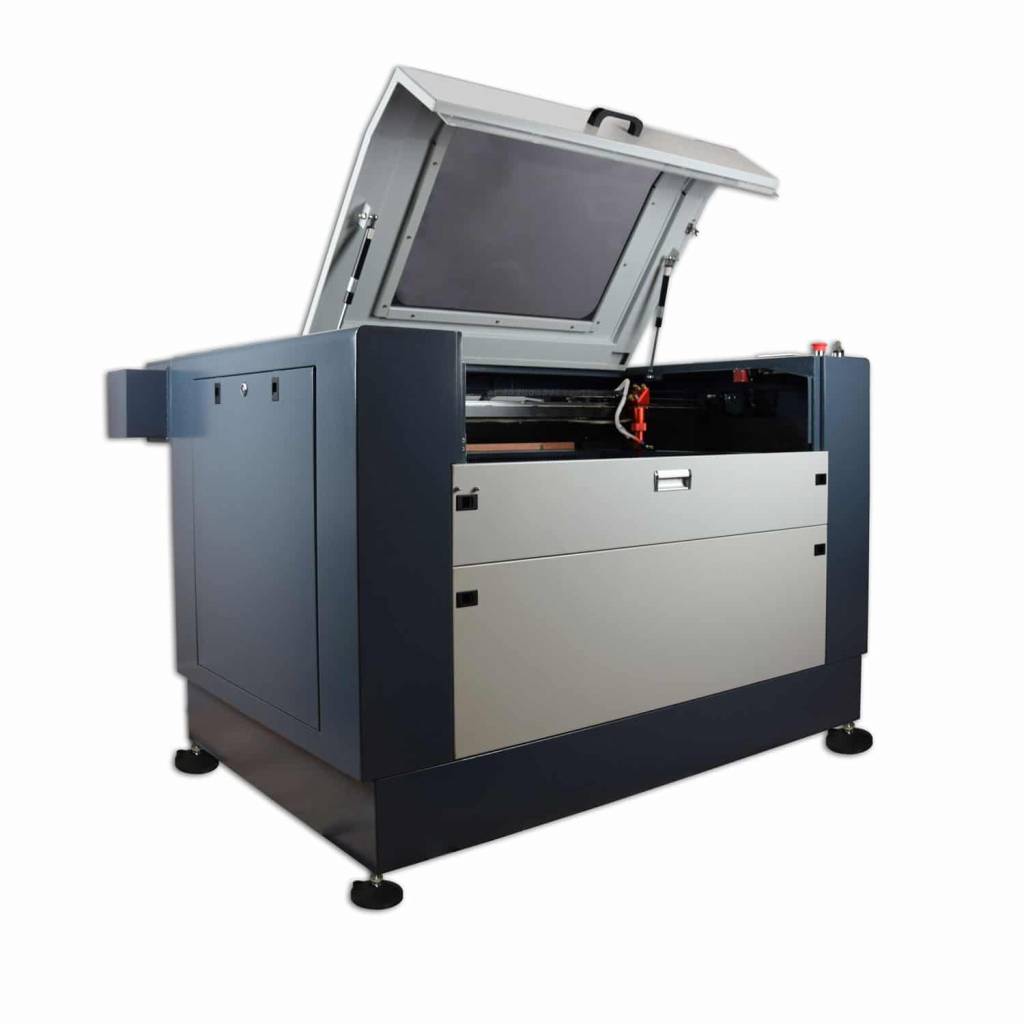

MetaQuip Lasercutter Production
MetaQuip Lasercutter Production 5599,- Excl. VAT

MetaQuip Lasercutter Production

Incl. VAT | Excl. Shipping costs Excl. VAT | Excl. Shipping costs
2 Weeks
SKU: MQ6040H-60W

CO2 Laser – Production Lasercutter & engraving machines

The MetaQuip production lasercutter & engraving machines engrave, cut and mark all types of materials and are optimized for volume production. These machines have options for larger working areas, or higher laser powers to cut larger objects in less time. The professional series is suited for businesses that are looking for a reliable, but also affordable machine for production purposes.
Laser cutting or engraving is an ideal process for a range of materials, especially flat sheet based materials. The infrared laser is focused to melt or evaporate the material, cutting through or ablating the top layer of the material. Laser engraving is possible even with granite, but more commonly used materials are plastics, wood, cork, paper, fabrics, leather, glass, mirrors and anodized or painted metal materials. During engraving the laser will ablate / evaporate the top layer, changing the surface structure even up to significant depths. Materials that can be cut easily are plastics, fabrics, leather, wood, cork and paper.

Laser Power

Laser power Acrylic / Plexiglass Fabrics / leather Wood Marble
40W 3-5 mm Best result optimal speed & power 2-4 mm Too low power
60W 8-10 mm Best result optimal speed & power 4-8 mm Too low power
80W 10 mm Best result optimal speed & power 6-10 mm Too low power
100W 12-15 mm Can be used, but not optimal 8-12 mm Engraving possible
130W 15 mm Can be used, but not optimal 10-15 mm Engraving possible

Automatic bed leveling (Z-height)

MetaQuip provides a fully automatic bed height adjustment for the Desktop and Professional CO2 laser machines. CO2 laser machines without this function must be manually adjusted every time after using a material with different thickness. This means that after placing the new material with a different thickness an included spacer must be used to position the laser head in focus. This requires to manually unscrew the laser head and position it against the spacer. Thereafter, the laser head must again be fixated by screwing it again. In the MetaQuip CO2 machines (not the Lite!) the bed (whole working area) can be fully automatically raised and lowered in the Z-direction. A sensor mounted to the laser head measures the distance to the new material and fully automatically focuses the laser head. No more adjustment, no manual work. Start immediately with cutting or engraving. Especially when you are often working with materials of different thicknesses this feature is very convenient and time-saving.

Optional Accessories


  • Laser Cutter & Engraving Machine
  • PC Software Application
  • Air compressor
  • Exhaust fan
  • Watercooler

Technical Specifications

  • Working Area: 600x400mm 1000x600mm 1200x90mm 1500x900mm

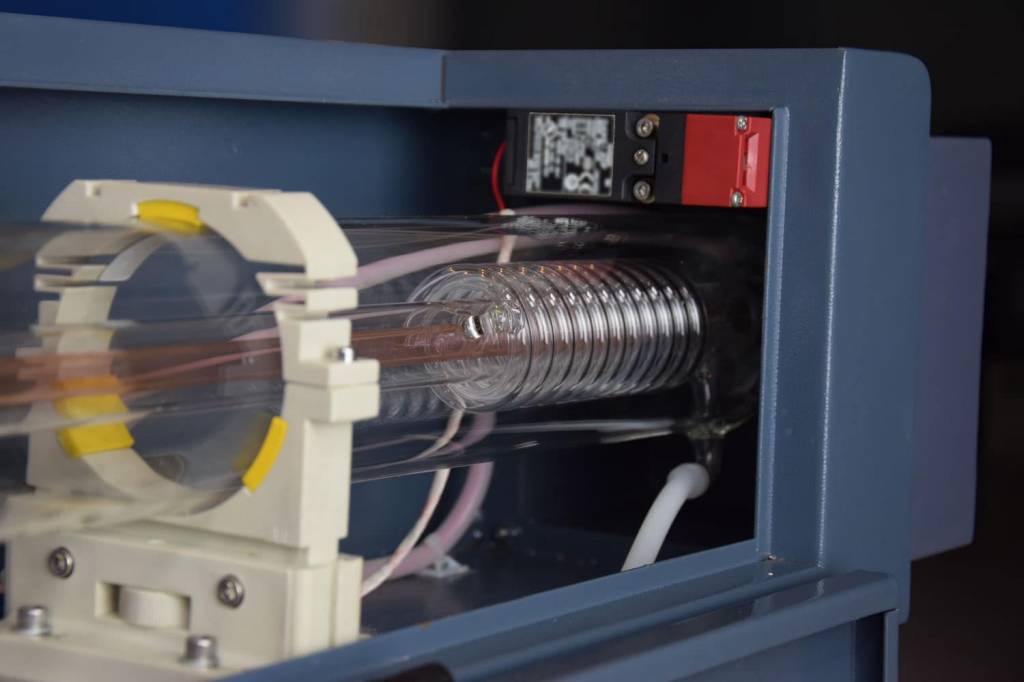

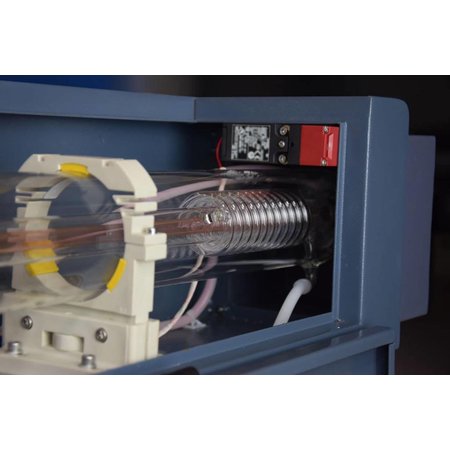

  • Laser Type: Glass Sealed-off CO, laser tube, wavelength 10.6 um
  • Laser Power: 40W, 60W, 80W, 100W, or 130W
  • Laser Tube Cooling: Purified Recycling Water Cooling
  • Laser Output Control: 0-100% No section control
  • Engraving Speed: 0-1200mm/s
  • Cutting Speed: 0-600mm/s
  • Working Voltage: AC230v/110V +/-10%, 50-60Hz
  • Position Accuracy: +/- 0.01mm
  • Minimal Character size: 1mm
  • Machine Power: < 1500W
  • Motorized Up-Down Table: High precision ball screw electric lift 250mm
  • Working Environment: Temperature 0-45 degrees Celcius, Humidity 5-95%
  • Control software: Lasercut, Laserworks (on request)
  • Supported Format: PLT, DST, DXF, BMP, AI, autoCAD support, Corel Draw output directly

Delivery Time

When not in stock, delivery time is between 8-12 weeks.

Shipping, Installation & Training

Within a radius of 100km from Asten this machine is delivered by MetaQuip free of charge. After delivery MetaQuip installs the machine and helps you to get started with a basic training on how to use the machine. Contact MetaQuip for deliveries outside the 100km radius. During the basic training you will learn how to deal with the system so you can get started quickly.

Warrantee & Certification

1 year, CE certified
